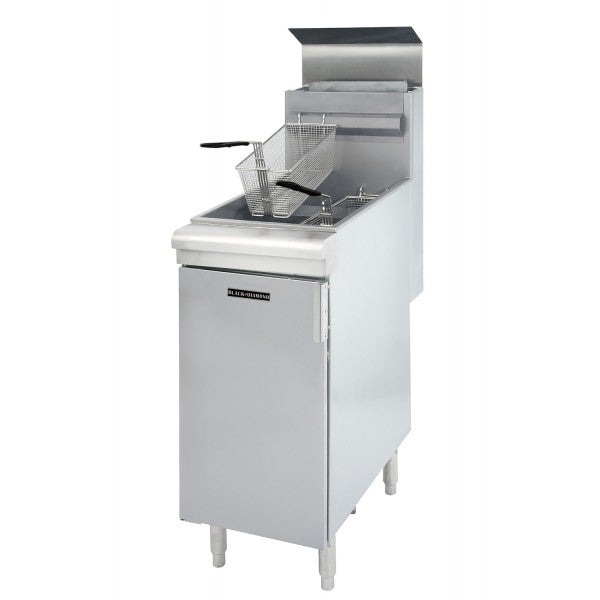

Adcraft GF-120/LPG/NG 120K BTU Gas Deep Fryer

Black Diamond's countertop gas fryers are constructed with a 16 gauge stainless steel tank and have a thermostat range of 200.°F (93.°C) to 400.°F (204.°C). Long lasting baffles are mounted in the heat exchange tubes to provide maximum heating and combustion efficiency. A standing pilot light design provides a ready flame when heat is required and an automatic shut off function when the fryer temperature exceeds 450.°F (232.°C).

• Welded 16 gauge stainless steel tank with a super smooth machine finish ensures easy cleaning
• Long lasting baffles are mounted in the heat exchange tubes to provide maximum heating and combustion efficiency
• Standing pilot light design provides a ready flame when heat is required
• Cabinet is constructed with a stainless steel front and door with galvanized sides and back

• Thermostat maintains temperature between 200.° (93.°C) and 400.°F (204.°C)
• Integrated gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator and automatic main valve
• Gas control valve prevents gas flow to the main burner until pilot is established and shuts off gas flow automatically if the pilot flame goes out
• Temperature limit automatically shuts off all gas flow if the fryer temperature exceeds 450.°F (232.°C)
• Includes Robert Shaw components that are made in the USA

• Standing pilot and thermostat maintain temperature automatically at the selected temperature (between 200.°F (93.°C) and 400.°F (204.°C))
• Front 1-1/4" drain for quick draining

• Two nickel plated oblong wire mesh baskets
• One nickel plated tube rack
• One drain extension
• Built-in heat deflector
• 6" adjustable legs

• Width: 53.5"
• Depth: 15.5"
• Height: 30.25"
• Burner Style: Cast Iron
• Legs: 6" adjustable steel
• Features: Robert Shaw Components
• Construction: Stainless Steel
• Power Type: Natural Gas
• Total BTU: 120,000
• Temperature Range: 200?F-400?F
• Burners: 4
• Net Weight: 163 lbs
• Gross Weight: 180 lbs
• Sold as: Each

Spec Sheet

Manual

WARRANTY INFO: (Residential Users) Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; you will be notified as soon as possible.
