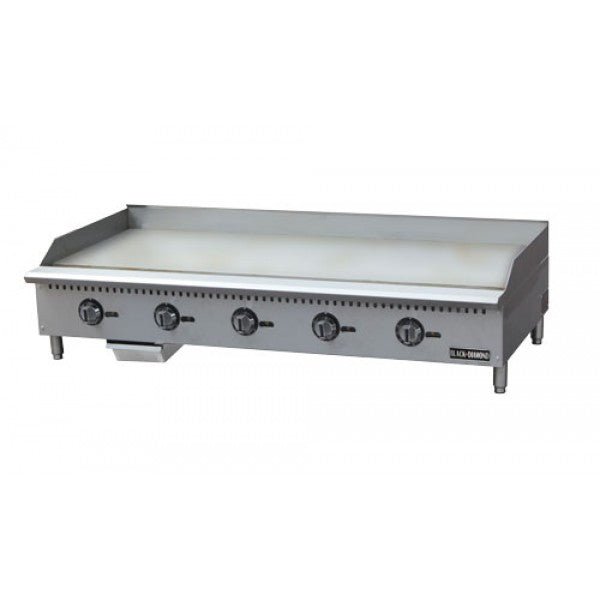

Adcraft Black Diamond BDCTG-60T 60" Thermostatic Gas Griddle

Adcraft Black Diamond BDCTG-60T 60" Thermostatic Gas Griddle

Black Diamond's heavy duty thermostatic griddles are designed to maintain precise cooking temperatures during your busiest hours. Each "U" shaped stainless steel burner puts out 30,000 BTU/hr and are spaced out evenly throughout the entire griddle plate giving you a more uniform heated surface. The thermostatic controls allow for precise cooking temperatures along the cooking surface. Each burner has its own individual standing pilot light and control which allows you to set up different cooking zones along the griddle plate. The 1" thick polished steel griddle plate is made to handle cooking at high heats for an extended period of time. The 20" cooking depth provides maximum cooking surface area. Comes standard with adjustable heavy duty legs, drip tray and has a 3/4" rear NPT gas connection. Field convertible to LPG. ETL Listed and ETL Sanitation.

• Stainless steel front, sides and splash guards that are fully welded for extra durability
• Griddle plate is made up of 1" thick polished steel
• One "U" shaped stainless steel burner for every 12griddle width
• 30,000 BTU/hr per burner
• Separate gas valves for each burner with standing pilot ignition system
• Adjustable thermostat from 200.- 450.F for precise control while cooking
• 3" wide grease trough for easy cleaning
• 4"-5" adjustable heavy duty steel legs
• Removable steel drip tray for easy cleaning
• 3/4" rear NPT gas inlet
• Field convertible to LPG - L.P. orifices included
• ETL Listed and ETL Sanitation

• Width: 60".
• Depth: 32".
• Height: 16".
• Cooking Area: 59.75"W x 22"D.
• Burner BTU: 30,000.
• Burner Style: Stainless Steel.
• Legs: 4"-5" adjustable.
• Gas Inlet Size: 3/4".
• Construction: Stainless Steel.
• Burners: 5.
• Power Type: Natural Gas.
• Temperature Range: 200. F-450.F.
• Net Weight: 463 lbs.
• Gross Weight: 529 lbs.
• Sold as: Each.

Spec Sheet

Manual

WARRANTY INFO: (Residential Users) Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; you will be notified as soon as possible.
