Dormont SM75 SwivelMAX 3/4 Inch Gas Rotation Fitting

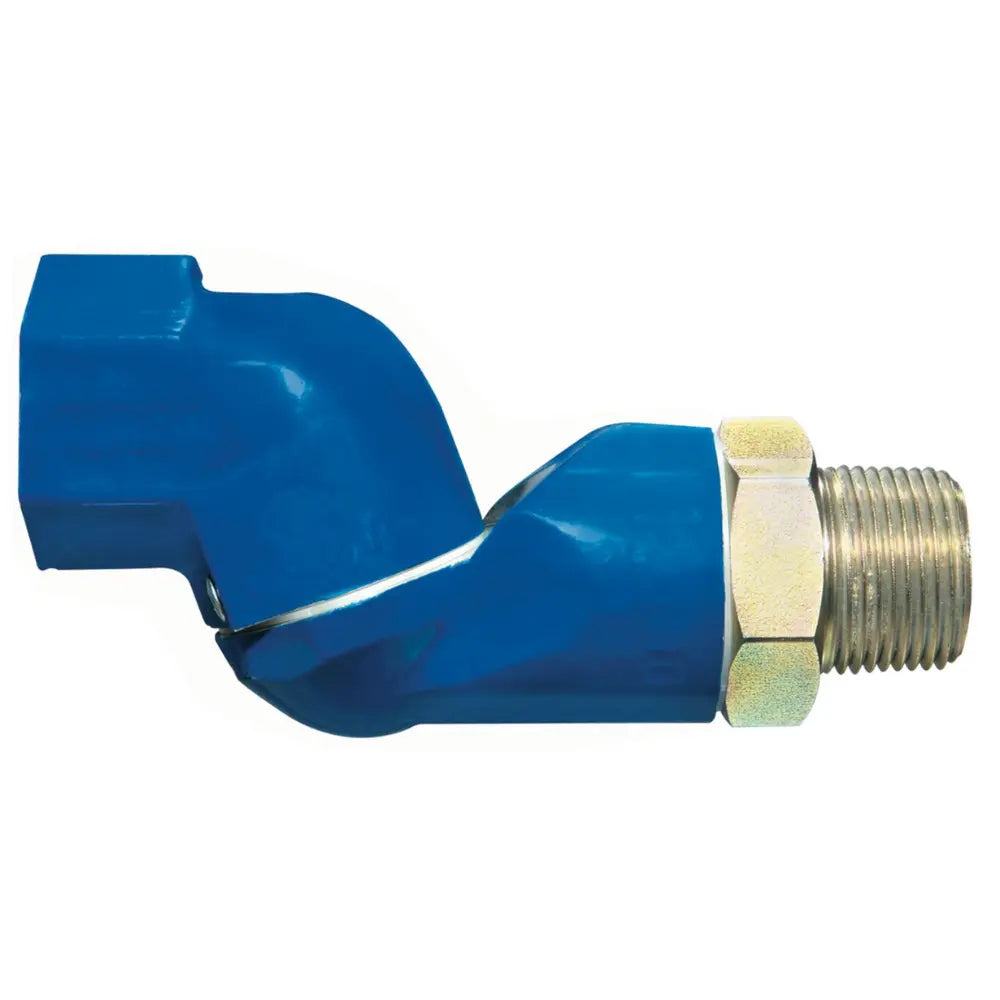

The Dormont SM75 SwivelMAX is a 3/4-inch NPT multi-plane rotation fitting that lets gas, water, or steam lines swivel freely during installation and servicing — taking the strain off connections to commercial steamers, kettles, coffee equipment, and sinks. It's the fitting that makes tight-quarters hookups manageable for kitchen technicians and plumbers working behind heavy equipment.
- 3/4" NPT connections with full 360-degree, multi-plane rotation to position lines without fighting the fitting
- Aluminum body with a threaded brass end — rated to 150 psi and 250°F
- CSA certified for commercial gas and plumbing applications
- Compatible with Dormont Safety Quik quick-disconnect valve combos #275-007, #275-008, and #275-041
- 5 inches long, weighs 0.61 lbs — compact enough to work in confined equipment bays
- California Prop 65: contains lead
If you're installing or reconnecting a steamer or kettle in a tight corner and the supply line won't line up cleanly, the SM75 gives you the rotation you need to land the connection without stressing the hose or the valve.
Specifications
| Connection Size | 3/4 in NPT |
|---|---|
| Rotation | 360-degree multi-plane |
| Max Pressure | 150 psi |
| California Prop 65 | Contains lead |
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm.
