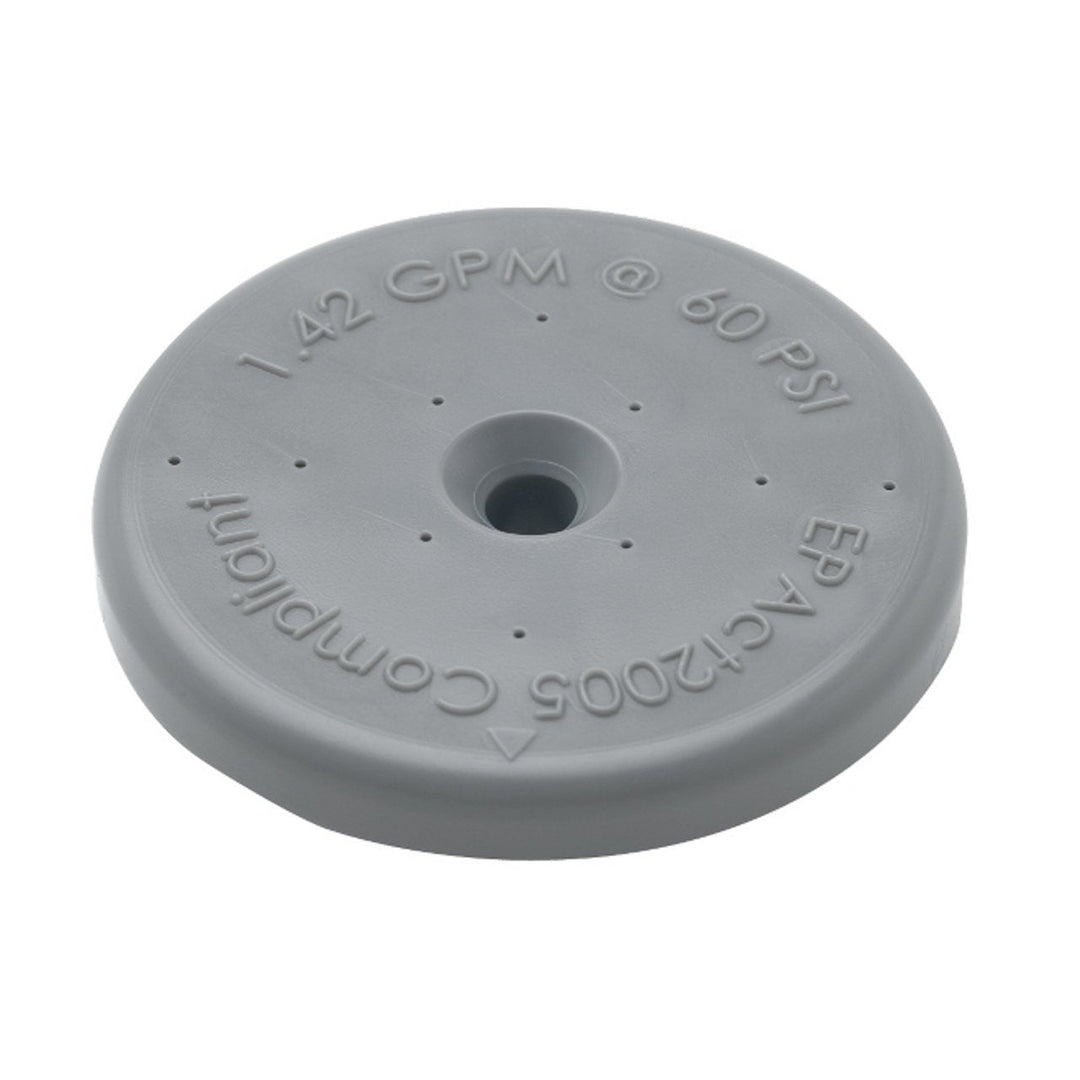

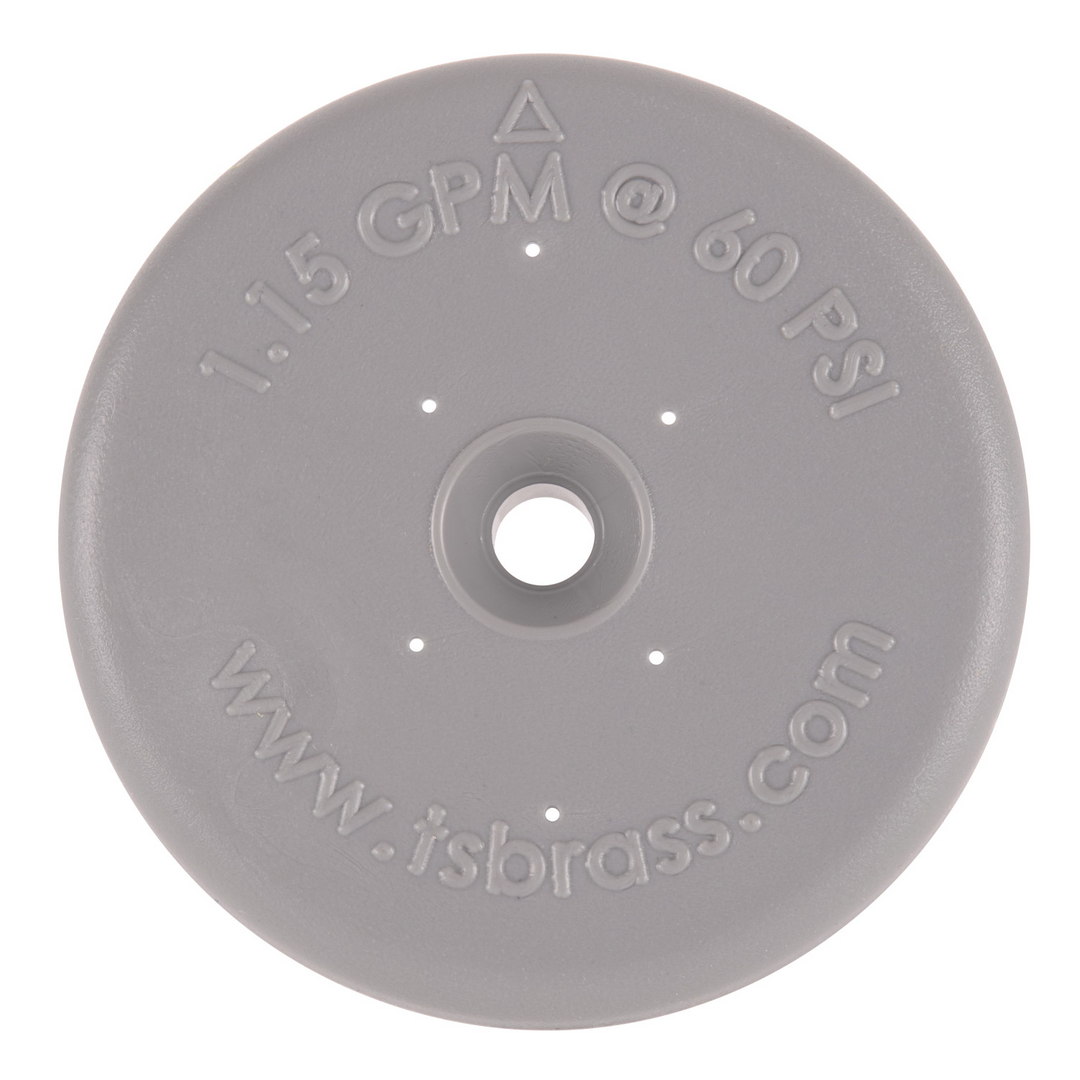

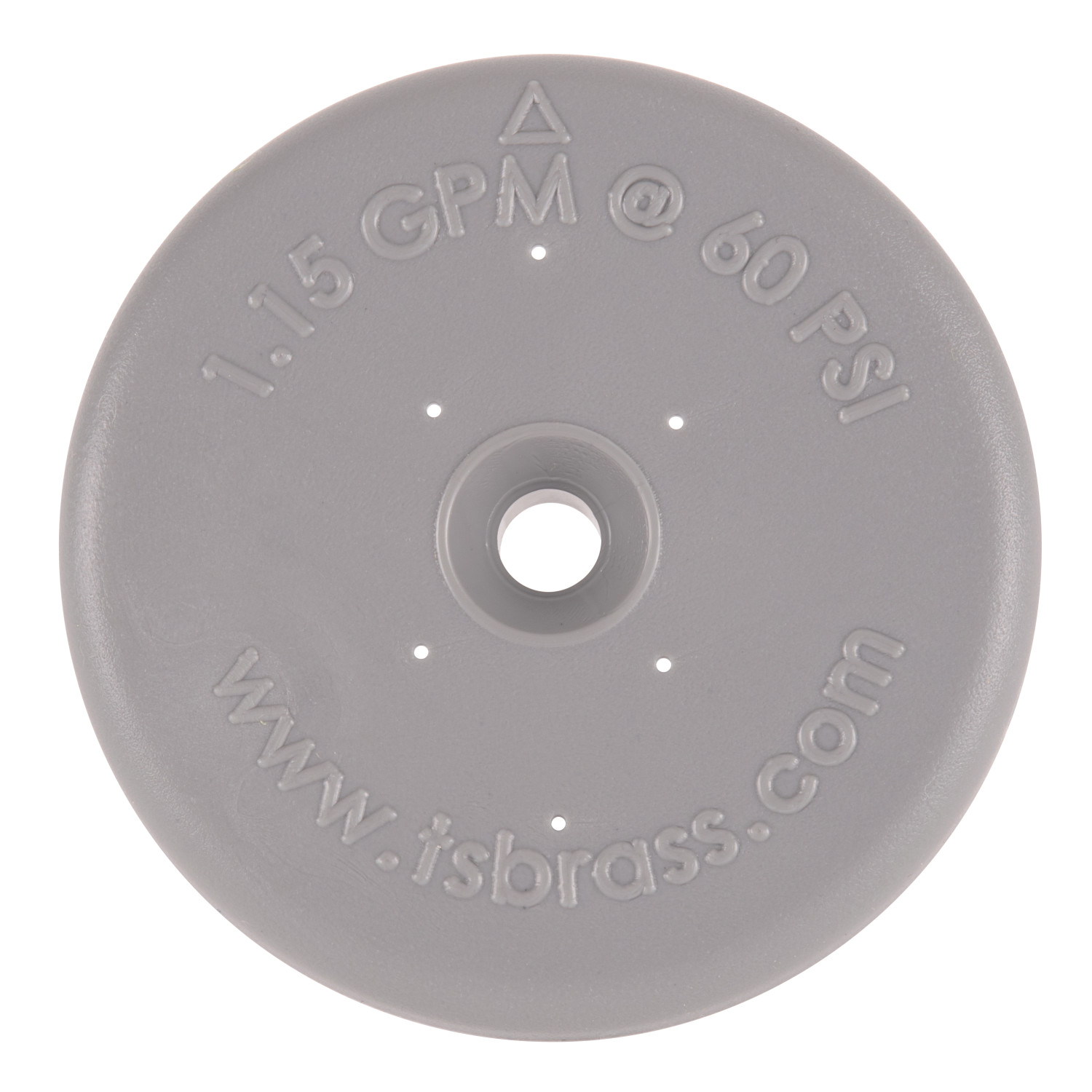

T&S 001121-45 Spray Valve Spray Face, Gray
When the spray face on a T&S B-0107 pre-rinse spray valve wears out or clogs, this gray replacement face restores it to working order without replacing the whole valve. It's the part kitchen techs and parts buyers reach for to keep a pre-rinse station running at the dish pit or prep sink. Flow rate is 1.15 GPM, rated for water temperatures up to 140°F and pressures up to 125 psi.
- Direct replacement spray face for the T&S B-0107 pre-rinse spray valve assembly
- Flow rate: 1.15 GPM (4.35 L/min) — meets DOE PRSV Class II efficiency standards
- Rated for 20–125 psi operating pressure and 40–140°F water temperature
- NSF/ANSI 61 and NSF/ANSI 372 certified; low lead compliant (0.25% max lead content)
- EPAct 2005 compliant; meets California Energy Commission (CEC) requirements
- Gray color matches existing B-0107 valve components; made in the USA
Sold individually — one spray face per unit. A straightforward fix when a worn or damaged face is causing uneven spray patterns or flow loss at the station.
Specifications
| Thickness | 1/2 in |
|---|---|
| Operating Pressure Range | 20–125 psi (1.38–8.62 bar) |
| Lead Content | 0.25% max (Low Lead Compliant) |
