T&S Brass 48" Gas Hose Quick Disconnect Kit 1/2" NPT HG-4C-48K

T&S Brass 48" Gas Hose Quick Disconnect Kit 1/2" NPT HG-4C-48K

The T&S Brass HG-4C-48K is a code-compliant gas connector kit built for commercial kitchens where movable equipment needs a safe, reliable connection to a fixed gas supply line. At 48 inches with 1/2" NPT connections and a built-in quick disconnect, it covers fryers, ranges, griddles, and other gas appliances that get pulled out for cleaning or service. Certified to ANSI Z21.69/CSA 6.16 and NSF 2, this kit meets the compliance requirements inspectors and health departments look for.

• 48" coated hose with stainless steel braiding — handles the daily flex and movement of a commercial kitchen line without cracking or kinking
• Quick-disconnect socket acts as a shutoff valve when the plug is removed — gas flow stops automatically when the appliance is disconnected
• FreeSpin 360° hex nut fittings on both ends rotate freely, so you can tighten connections without twisting the hose out of position

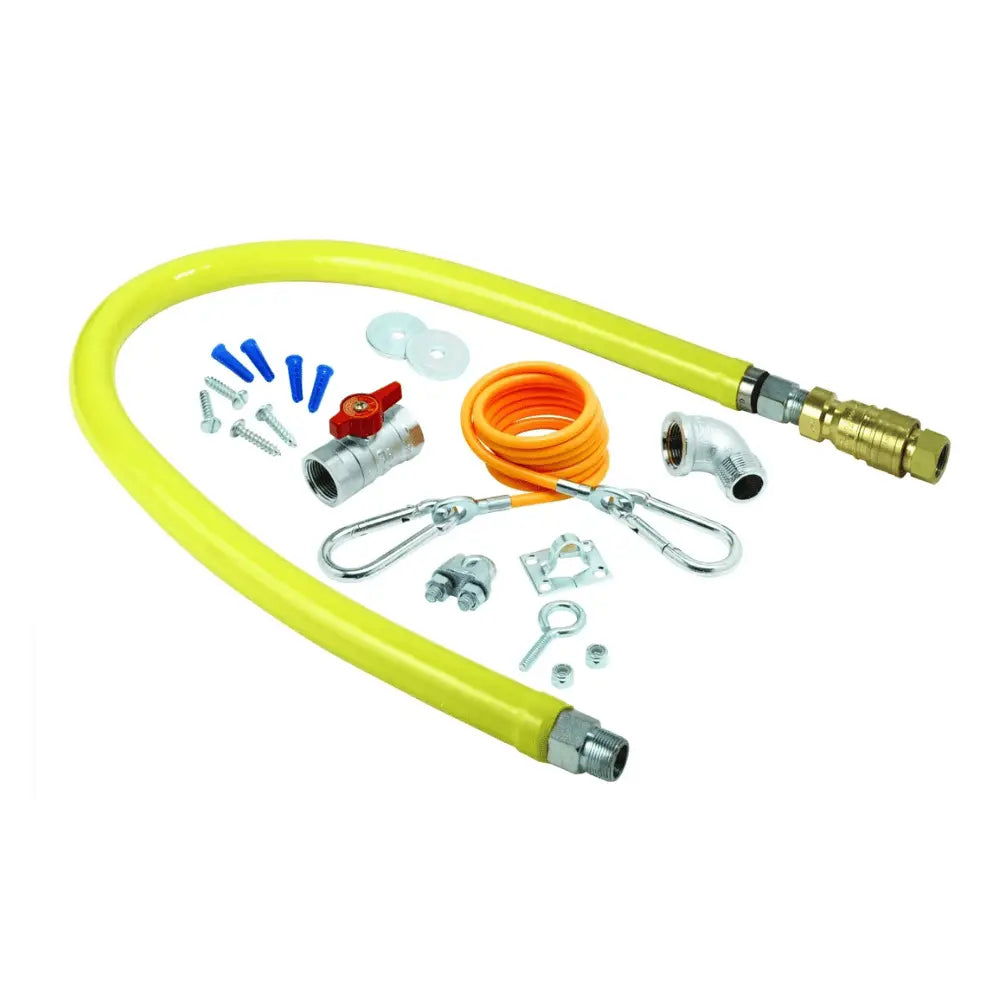

• Kit includes quick disconnect, ball valve, street elbow, and an adjustable restraining cable (3 to 5 feet) — everything needed for a complete, code-ready install
• Rated for a minimum of 70,000 BTU/hr at up to 0.5 psi and 350°F — suitable for standard commercial gas appliance loads
• Certified to ANSI Z21.69/CSA 6.16 and NSF 2, meeting commercial foodservice installation standards

A good fit for restaurants, commissaries, and institutions where gas appliances need to roll out for hood cleaning or floor scrubbing — the quick disconnect and restraining cable keep the setup safe and compliant every time.

Specifications
