T&S Brass 48 Inch Quick Disconnect Gas Connector Hose 3/4 NPT
T&S Brass 48" Quick Disconnect Gas Connector Kit 3/4" NPT
The T&S Brass HG-4D-48K Safe-T-Link gas connector kit connects a movable commercial gas appliance to a fixed supply line — safely and to code. At 48 inches with a 3/4" NPT quick-disconnect, it's built for restaurants, cafeterias, and institutional kitchens where fryers, ranges, and other gas equipment need to be pulled for cleaning or service without shutting down the whole line.
- 48" coated stainless steel hose with 3/4" NPT connections — handles up to 180,000 BTU/hr minimum flow capacity

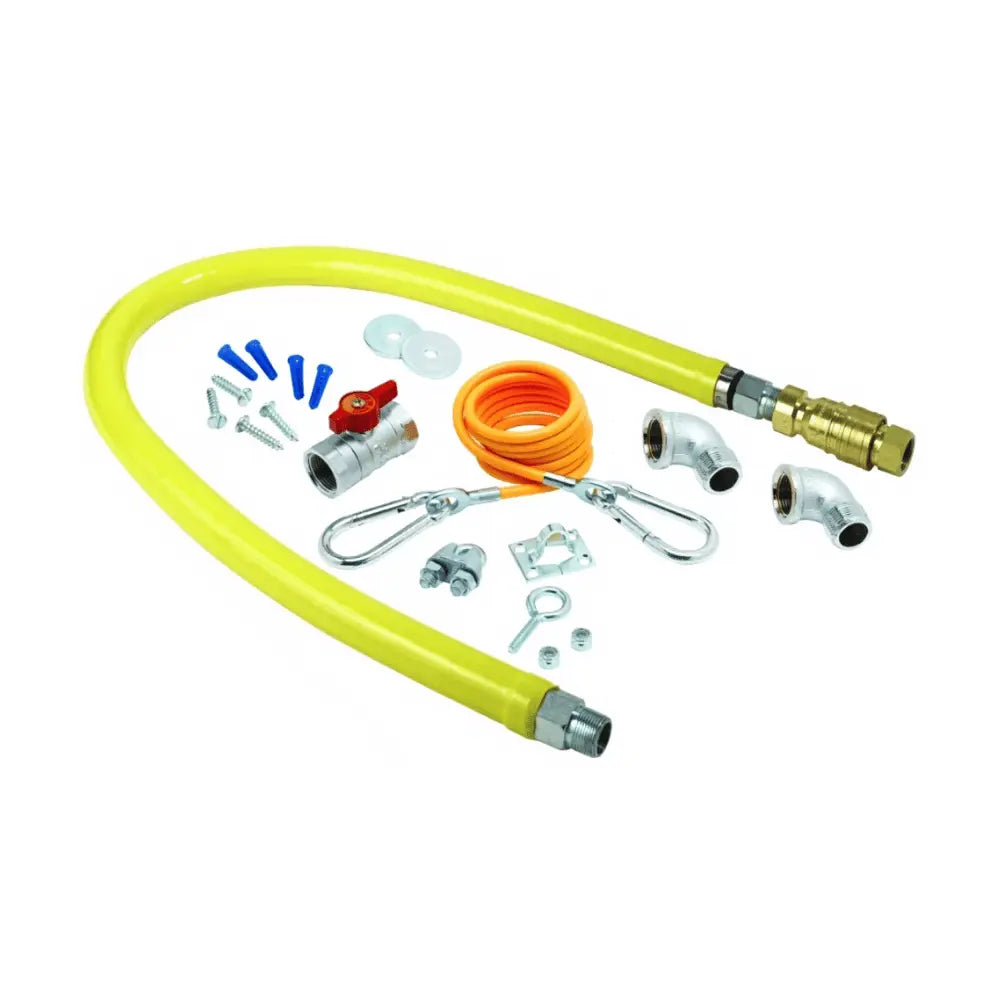

- Kit includes the hose, quick-disconnect, street elbow, ball valve, and a restraining cable adjustable from 3 to 5 feet
- Rated to 0.5 psi max pressure and 350°F max temperature — suitable for standard commercial gas appliance connections
- Freespin hex nut rotates fully to reduce torsional stress during installation and movement
- Certified to ANSI Z21.69/CSA 6.16 and NSF 2 — meets commercial kitchen code requirements for movable gas appliance connectors
- Extruded plastic coating over stainless steel braiding resists abrasion and protects the hose in high-traffic kitchen environments
A good fit when you need a compliant, all-in-one hookup solution for a single movable gas appliance — everything to make the connection is in the kit.
Specifications
| Connection Size | 3/4 in NPT |
|---|---|
| Connection Configuration | 1 Male Freespin Inlet, 1 Female Quick-Disconnect Outlet |
| Max Pressure | 0.5 psi (0.03 bar) |
| Min Flow Capacity | 180,000 BTU/hr |
| California Prop 65 | Yes |
