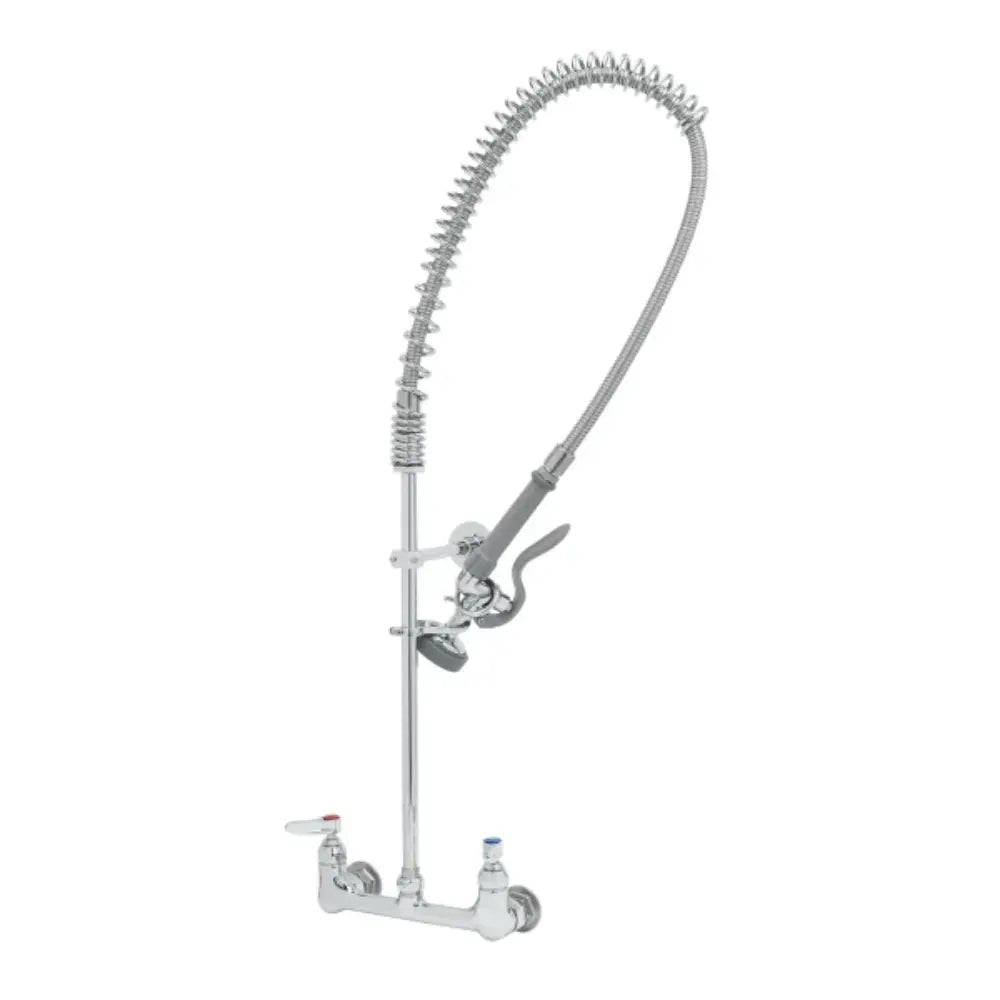

T&S Brass B-0133-B 8 Inch Wall Mount Pre-Rinse Faucet

T&S Brass B-0133-B 8 Inch Wall Mount Pre-Rinse Faucet

The T&S Brass B-0133-B is a wall mount pre-rinse faucet built for the commercial dish station. It ships as a complete EasyInstall unit with an 18-inch riser that drops into place without threading, making it a practical choice for new installations or quick replacements at 8-inch center sinks. The 1.15 GPM B-0107 spray valve meets current DOE efficiency standards while still delivering the pressure needed to knock food debris off plates and pans before they hit the dish machine.

• 8-inch adjustable faucet centers (7-3/4" to 8-1/4") fit standard commercial sink decks and wall-mount configurations
• 18-inch riser uses T&S EasyInstall "pop and lock" connection — no wrench needed to seat the riser during install
• 44-inch flexible stainless steel hose with heat-resistant handle and hold-down ring gives the dish crew enough reach across the sink
• 1.15 GPM spray valve (B-0107) is NSF 61/372 certified and 2019 DOE PRSV Class II compliant — meets code in water-regulated jurisdictions
• 1/4-turn Eterna compression cartridges with spring checks prevent hot and cold water from crossing between supply lines
• 1/2" NPT female eccentric inlets with 2-inch flanges cover wall imperfections and connect to standard supply lines; operating range 20–125 psi, up to 140°F
• Polished chrome brass body, 6-inch wall bracket included; certifications include ASME A112.18.1, CSA B125.1, ASTM F2324, and ANSI/NSF 61 and 372

A good fit for restaurants, cafeterias, and commissary kitchens running a three-compartment sink or a dedicated pre-rinse station that needs a code-compliant, drop-in replacement or new build-out unit. Carries a three-year limited warranty from T&S.

Specifications
