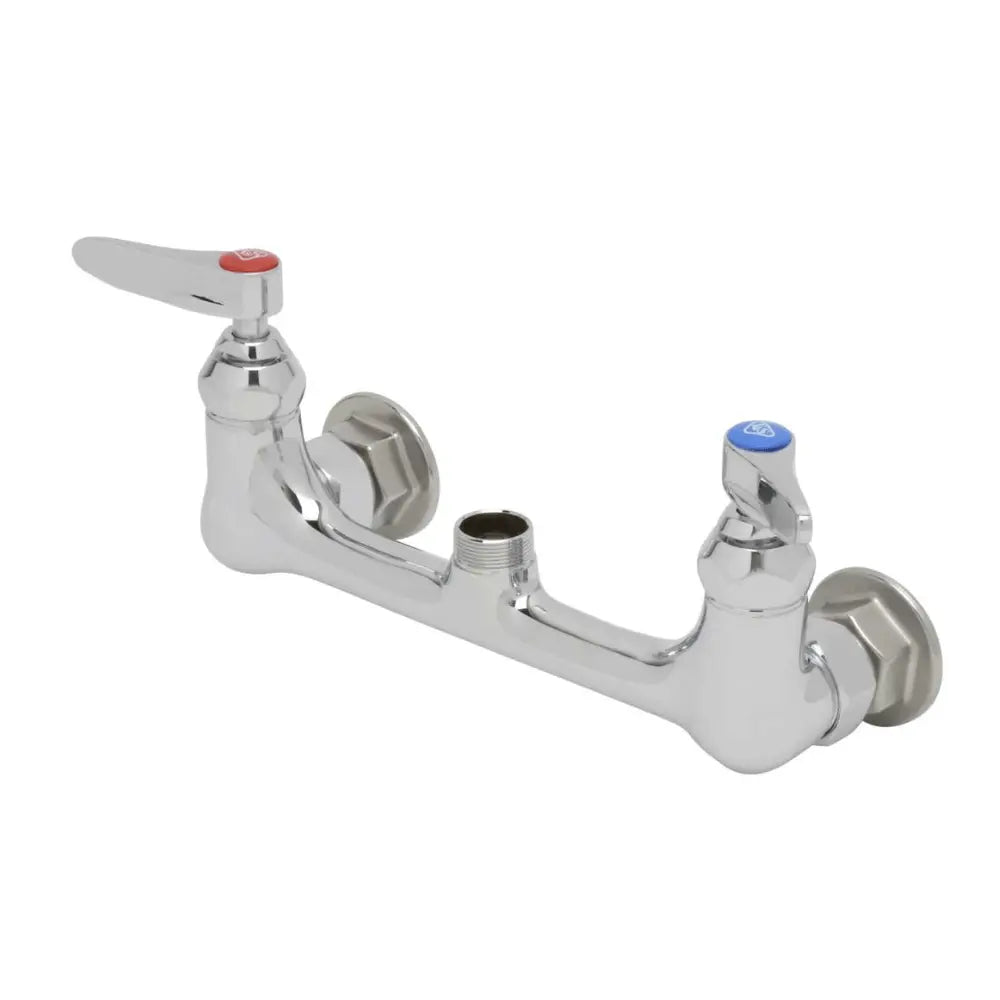

T&S Brass B-0230-LN Double Pantry Faucet Wall Mount 8" Centers
In Stock— 3 available•
Fast Ship Item
Pickup available at Dean Supply Company·
Usually ready in 1 hour
Store details
3500 Woodland Ave.
Cleveland OH 44115
United States
Description
T&S Brass B-0230-LN Double Pantry Faucet Wall Mount 8" Centers
The T&S Brass B-0230-LN double pantry faucet wall mount 8 inch centers is a two-handle, wall-mounted mixing faucet built for commercial kitchen sink and bar installations. The swivel outlet accepts T&S swing nozzles (sold separately), and the commercial wall mount pantry faucet swivel base adjusts from 7-3/4" to 8-1/4" centers to fit existing rough-in. Ships less nozzle — order the compatible 6" through 18" swing nozzle separately based on your setup.
- Polished chrome plated brass body; 4.66 lbs.; made in USA
- 1/2" NPT female eccentric inlets with 2" flanges for wall rough-in flexibility
- 1/4-turn Eterna compression cartridges with spring checks to prevent cross flow
- Lever handles with color-coded indexes; lock washer included for rigid outlet use
- 28.63 GPM flow rate; rated 20–125 psi; 40°F–160°F operating range
- Overall width: 12-1/2"; body thickness: 3-1/8"
ADA compliant; cCSAus certified; meets ASME A112.18.1, CSA B125.1, ANSI/NSF 61, NSF 372, and BAA/ARRA requirements. Covered by a 1-year limited warranty.
Specifications
| Mount Type | Wall mount |
|---|---|
| Centers | Adjustable 7-3/4" to 8-1/4" |
| Inlets | 1/2" NPT female eccentric with 2" flanges |
| Body Thickness | 3-1/8 in |
Specifications
Certifications
ASME A112.18.1CSA B125.1NSF 372
Manufacturer part number
B-0230-LN
Material
Chrome Plated Brass
Max temperature
160°F
Min temperature
40°F
Sold as
Each
Width
12.5 in
Brand
T and S Brass and Bronze Works
Product Type
Faucets
SKU
230217EA1
Weight
5.0 lb
