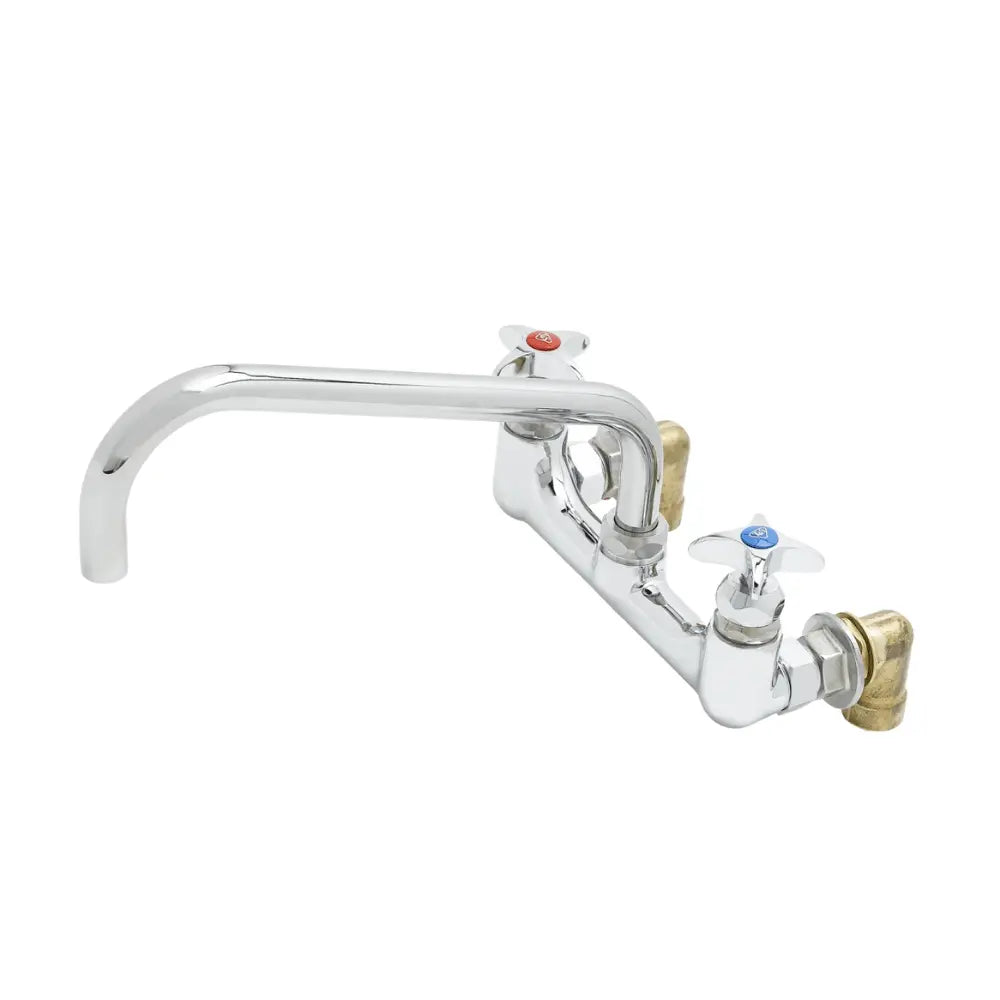

T&S Brass B-0290 Big-Flo 8 Inch Wall Mount Mixing Faucet, 12" Swing Nozzle
T&S Brass B-0290 Big-Flo Mixing Faucet 8" Wall Mount 12" Swing Nozzle
The T&S Brass B-0290 Big-Flo mixing faucet is built for commercial sinks and prep areas that need serious water volume fast. Wall-mounted with 8-inch centers and a 12-inch swing nozzle, it fits the standard layout of most restaurant and institutional sink installations and handles flows up to 44.27 GPM. This is the faucet plumbers and operators reach for when a standard-flow fixture won't keep up with the work.
- Big-Flo design delivers up to 44.27 GPM (167.56 L/min) — sized for high-demand commercial sink stations
- 8-inch center spacing (203.2 mm) with adjustable centers and 3/4-inch NPT female inlets; includes LL street elbow inlet fittings with locknuts
- 12-inch swivel nozzle with plain end outlet gives you reach across wide sink compartments
- Polished chrome-plated brass body; compression spindles; four-arm (cross) handles rated to 175°F
- Rated 20–125 psi operating pressure; 40–140°F water temperature range
- Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372; meets ADA ANSI/ICC A117.1 requirements; made in the USA
A common fit for three-compartment sinks, pot wash stations, and utility prep areas in restaurants, commissaries, and institutional kitchens where throughput matters and downtime doesn't.
Specifications
| Mount Type | Wall |
|---|---|
| Body Centers | 8 in (203.2 mm) |
| Nozzle Length | 12 in (304.8 mm) |
