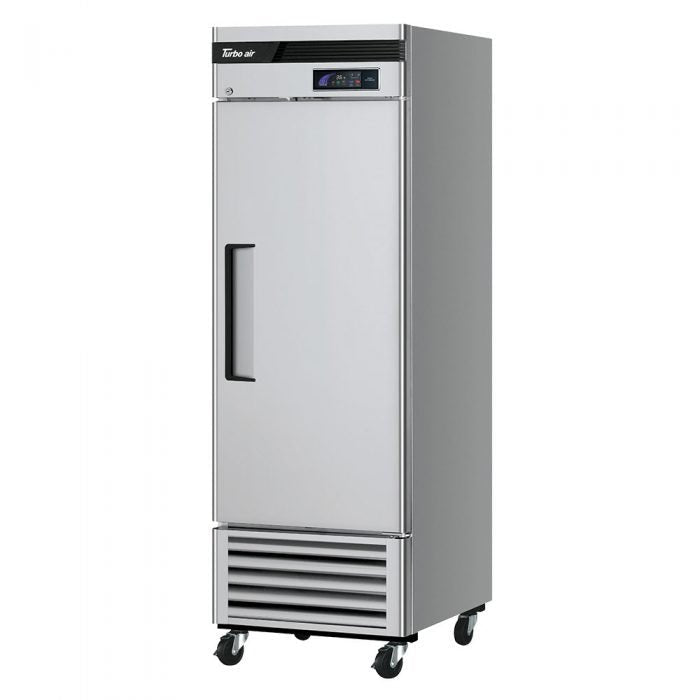

Turbo 19.03 cu. ft. One-section Reach-in Refrigerator (TSR-23SD-N6)

This super deluxe reach-in refrigerator has one section and is equipped with a self-cleaning condenser. This model features a stainless steel interior and exterior (galvanized steel top, bottom and back) with three adjustable stainless steel wire shelves. The solid hinged door has a recessed handle on the Right. It comes equipped with an exterior LED digital controller, self-diagnostic monitoring system, door-open alarm beeps, Turbo cooling, automatic fan motor delays, door pressure release device, LED interior lighting, door locks, 4" dia. swivel casters, a bottom mount compressor, anti-corrosion coated evaporator, 19.03 cu.ft., 115v/60/1, NEMA 5-15P, 1.5 Amps, 1/8 HP, ETL-Sanitation, cETLus

Warranty
3 Year Parts & Labor
Additional 4 Year Compressor

Features

• Self-Cleaning Condenser
• Digital temperature control & monitor system
• Hydrocarbon refrigerants (R-600a)
• Stainless steel cabinet construction
• Sturdy, clean stainless steel shelving
• Door pressure release device
• High-density polyurethane insulation
• Left hinged model available
• LED Interior lighting
• Bottom mount compressor
• Refrigerator holds 33.°F ~ 38.°F for the best in food preservation

Standard Features

• Anti-corrosion coated evaporator
• Door locks standard
• Positive seal self-closing doors
• Easy replaceable one piece magnetic door gaskets
• Self-contained system
• Solid and sturdy grille design
• Standard 4" dia. swivel casters with locks on the front set

Specifications:

• Voltage: 115/60/1
• Plug Type: NEMA 5-15P
• Full Load Amperes: 1.5
• Compressor HP: 1/8
• Feed Wires with Ground: 3
• Cord Length (ft.): 7
• Refrigerant: R-600a
• # of Doors: 1
• # of Racks Accepted: 1
• Net Capacity: (cu. ft.): 19.03
• Ext. Length Overall (in.): 27 (686mm)
• Ext. Depth Overall (in.): 30-3/8 (770mm)
• Ext. Height Overall (in.): 78-1/4 (1987mm)

• nt. Length Overall (in.): 23 (584mm)
• Int. Depth Overall (in.): 26-1/4 (666mm)
• Int. Height Overall (in.): 60 (1524mm)
• # of Shelves: 3
• Shelf Size (L x D) (in.): 22 x 23-1/2
• Gross Weight (lbs.): 274


*Height does not include 5" caster height or 6" optional legs.

Spec Sheet. Users Manual
