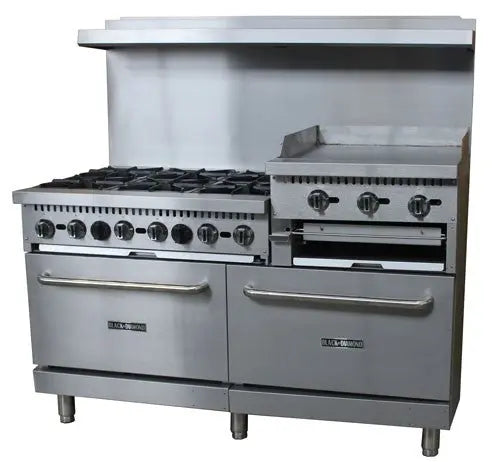

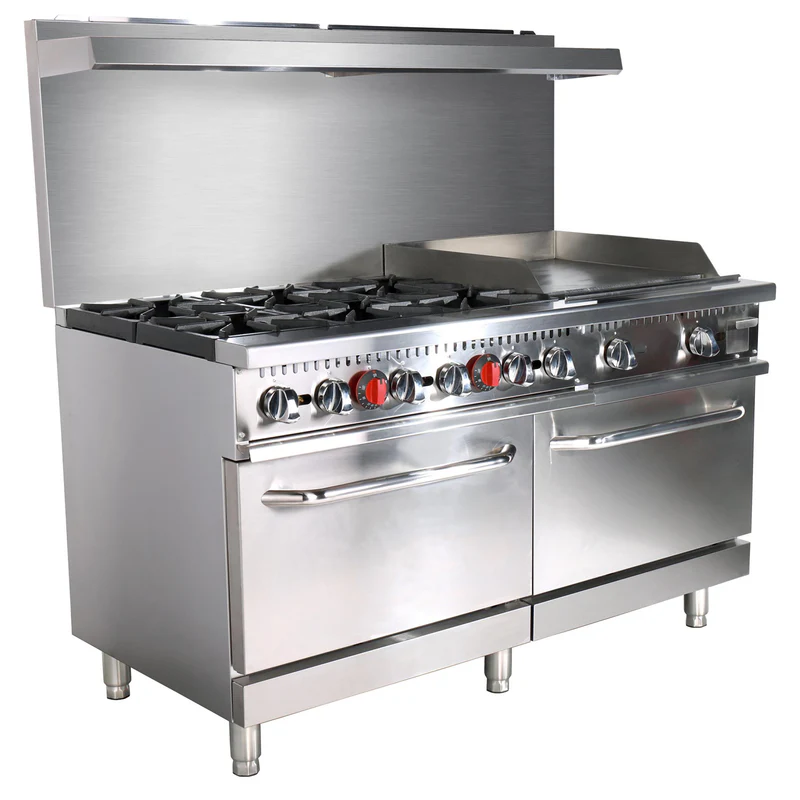

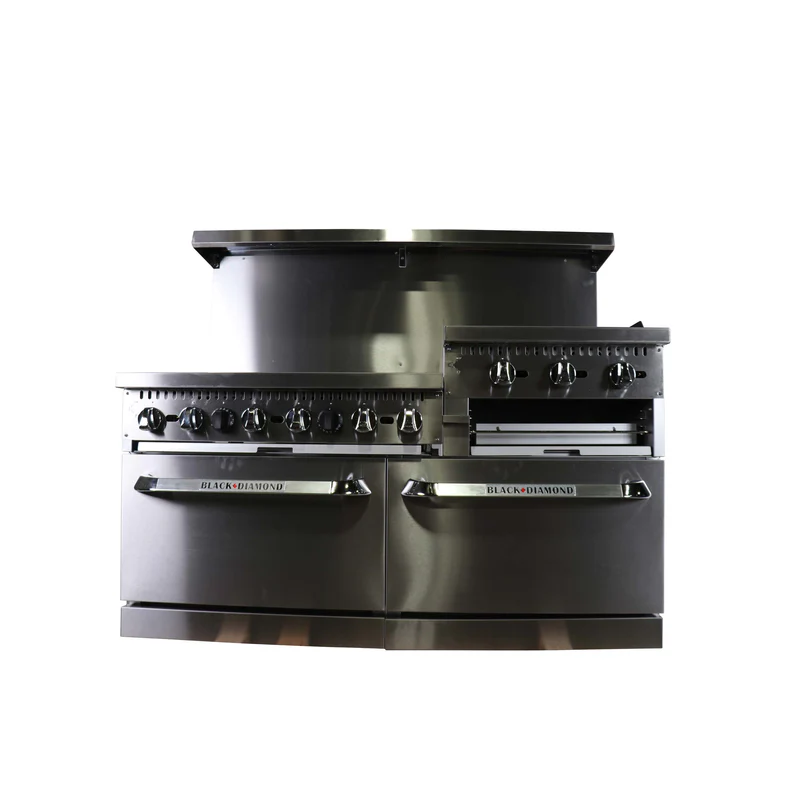

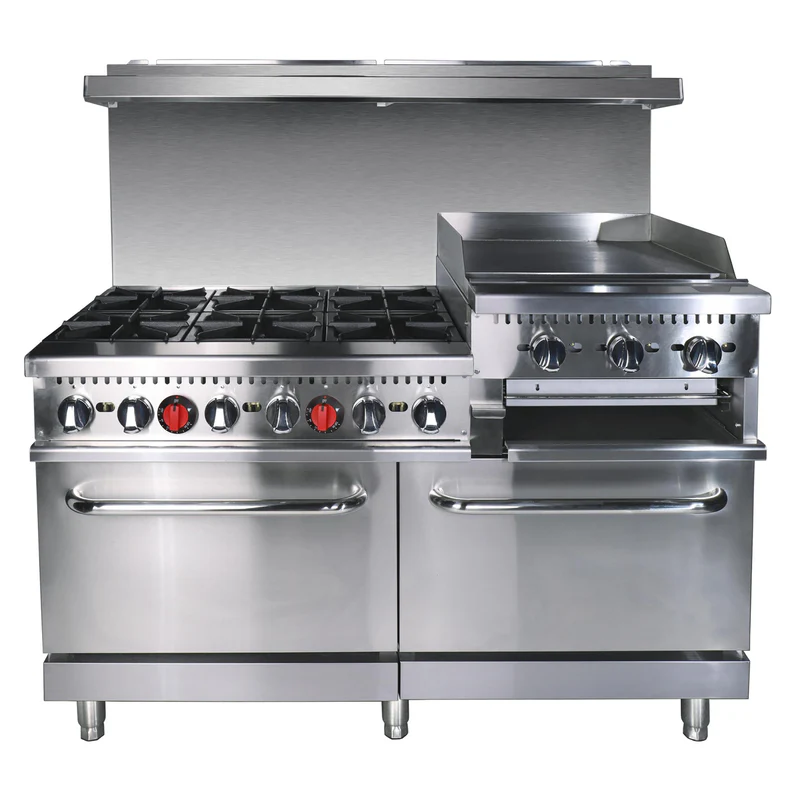

Adcraft BDGR-6024GB/NG 60" Wide Gas Range/Griddle Combo with 6 Burner

Black Diamond's gas range/griddle combos are constructed of stainless steel fronts with aluminized sides. These gas range/griddle combos provide the most optimum cooking performance. 12" x 12" heavy duty cast iron grates allow you to easily slide heavy pots from one section to another, while a unique anti-clogging pilot shield ensures that the open top burners deliver long-lasting performance. The unit's have a 3/4" thick griddle plate with a manual control and a 24" wide cooking area. With it's deep cooking area, and a 5" front ledge these ranges provides you with plenty of room to work. The standard sized oven(s) each have 30,000 BTUs of cooking power and a unique double-wall flame spreader with temperature diverters to ensure even heat distribution. The oven's interior has a porcelain bottom. 6" stainless steel legs and 24.75" high backriser. 3/4" rear NPT gas connection. ETL Listed and ETL Sanitation.

Construction:

• Stainless steel front, backriser and shelf
• 30,000 BTU/hr top burners with lift-off heads
• 12" x 12" cast iron removable top grates
• Individual pilot light for each burner
• Spring loaded door with cool to touch s/s handle
• Removable crumb tray for easy cleaning
• 3/4" rear NPT gas connection
• LPG conversion kit included
• 6" adjustable stainless steel legs

Oven Features:

• 30,000 BTU/hr total output
• Flame failure safety device
• Adjustable thermostat ranges from 150.°F-550.°F
• Steel liner on door and sides with a porcelain oven liner
• Includes 2 removable and adjustable oven racks per oven
• Cool to touch stainless steel oven door handle

Top Burners:

• Cast iron burners each giving off 30,000 BTU/hr
• 12" x 12" cast iron top grates are removable for easy cleaning and maintenance
• Each burner has an individual standing pilot light and control knob
• Extra 2" ledge between the burners and backsplash provides more room for bigger pots and pans during use

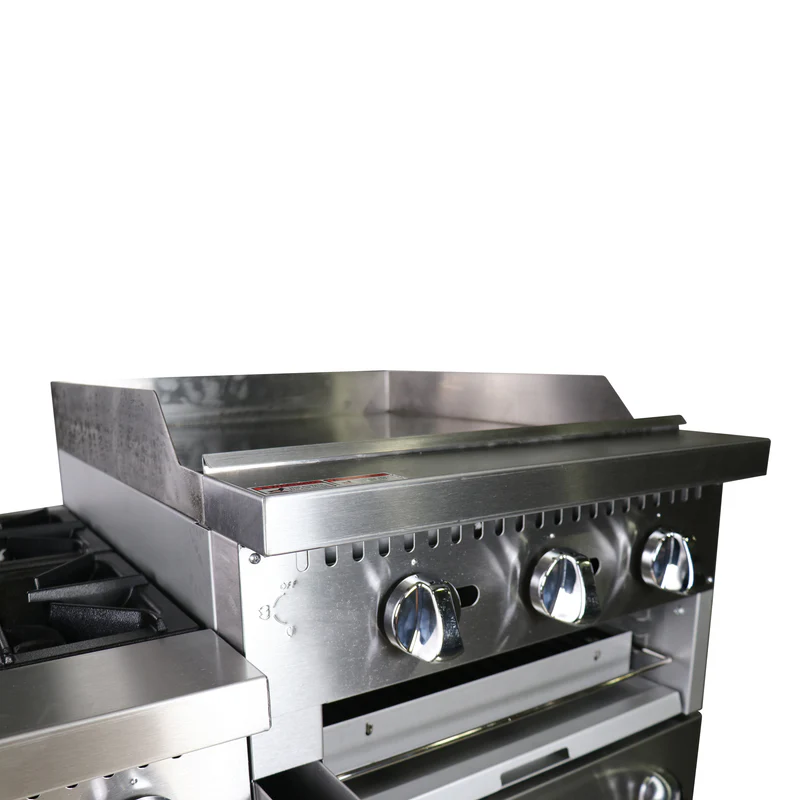

Griddle/Broiler:

• 3/4" thick polished steel griddle plate
• 24"W x 21"D cooking area
• Each burner has an individual standing pilot light and control knob
• Raised griddle/broiler on the FMGR-6024GB model has an 8.25" high opening
• Has a built-in broiler rack that slides in and out and has an adjustable height
• 3" high sides and backsplash are fully welded
• Includes removable crumb and drip trays for easy cleaning

Specifications:

• Number of Burners: 6
• BTU's: 276,000
• Griddle Plate Thickness: 3/4"
• Number of Shelves: 4
• Field Convertible to LPG: Yes
• Certifications: ETL Listed, ETL Sanitation
• Sold as: Each.

Spec Sheet

Manual

WARRANTY INFO: (Residential Users) Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; you will be notified as soon as possible.
