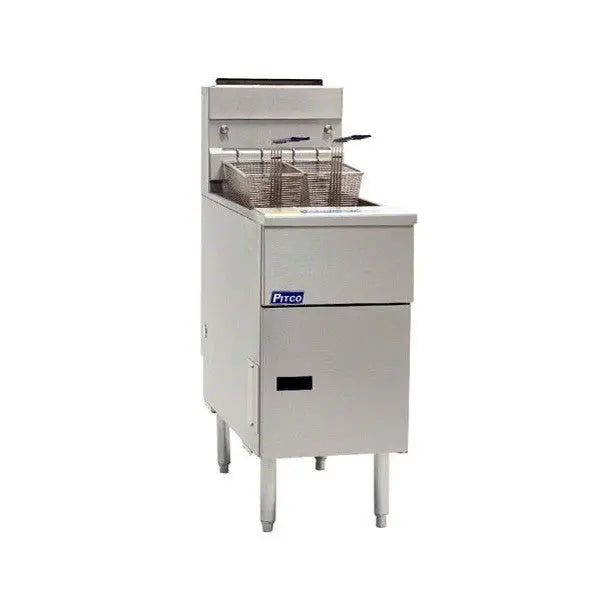

Pitco SG14S Solstice Tube Fired 50 lbs Gas Fryer

The Pitco Gas Fryer is a heavy duty floor model that comes standard with a millivolt thermostat, thermo-safety pilot, and high temperature safety limit switch. This unit can be ran in series with other Pitco Solstice fryers to create a unique system, all running off the same battery, to fit your specific kitchen needs.

Construction:

• Welded tank with an extra smooth peened finish ensures easy cleaning.
• Long-lasting, high-temperature alloy stainless steel heat baffles are mounted in the heat exchanger tubes to provide maximum heating and combustion efficiency.
• Standing pilot light design provides a ready flame when heat is required.
• Stainless steel front, door, side, and splashback.
• Heavy duty 3/16" (.48 cm) door hinge.

Controls:

• Millivolt thermostat maintains selected temperature automatically between 200F (93C) and 400F (190CCE).
• Integrated gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator, and automatic main valve.
• Gas control valve prevents gas flow to the main burner until pilot is established and shuts off all gas flow automatically if the pilot flame goes out.
• Temperature limit switch safely shuts off all gas flow if the fryer temperature exceeds the upper limit.

Operations:

• Front 1 1/4" (3.2 cm) full port drain for quick draining.
• 9" (22.9 cm) clearance allows for ease of cleaning.

Specification:

• BTU: 110,000
• Gas Type: Natural or LP Gas
• Oil Capacity: 40 - 50 pounds
• Frying Area: 14 x 14 x 4 in (35.6 x 35.6 x 10.2 cm)
• Performance: Cooks 88 lbs (40 kg) of fries per hour
• Shipping Weight: 190 lbs
• Shipping Dimension: 45-1/4H x 18-3/4W x 38-1/2L inches

Standard Accessories:

• Two nickel-plated, oblong, wire mesh baskets
• One nickel-plated, square, wire mesh basket
• One nickel-plated tube rack
• One drain extension
• One drain line clean-out rod
• Fryer cleaner sample
• Rear gas connection
• Manual gas shutoff
• 1 1/4" (3.2 cm) full port drain valve
• Built-in integrated flue deflector
• Removable basket hanger for easy cleaning
• 9" (22.9 cm) adjustable legs
• Cabinet - stainless steel front, door, and sides
• Tank - stainless steel
